Architecture project // Plexiglass Walls and Steel Structure Create Inviting Reading Spaces

Plexiglass Walls and Steel Structure Create Inviting Reading Spaces

Authors:

Albert Manhertz, Lilla Bukovácz

Transparent plexiglass walls and a robust steel frame create a portable library that enhances community engagement with literature in urban park settings.

5 key facts about this project

Library Quarter includes weatherproof walls and doors for optimal protection and comfort.

Reading Quarters feature transparent plexiglass walls for natural light and environmental connection.

Bike Quarter integrates a structural steel strip that doubles as a bike rack to promote sustainable transport.

The design employs ground screws for a minimal site disturbance and easy setup.

Modular configuration allows for flexible use in various urban settings, enhancing community accessibility.

General keywords

reading library yurt portable public parks community sustainability interaction urban

Project specific keywords

plexiglass bike rack ground screws reading quarters library quarter

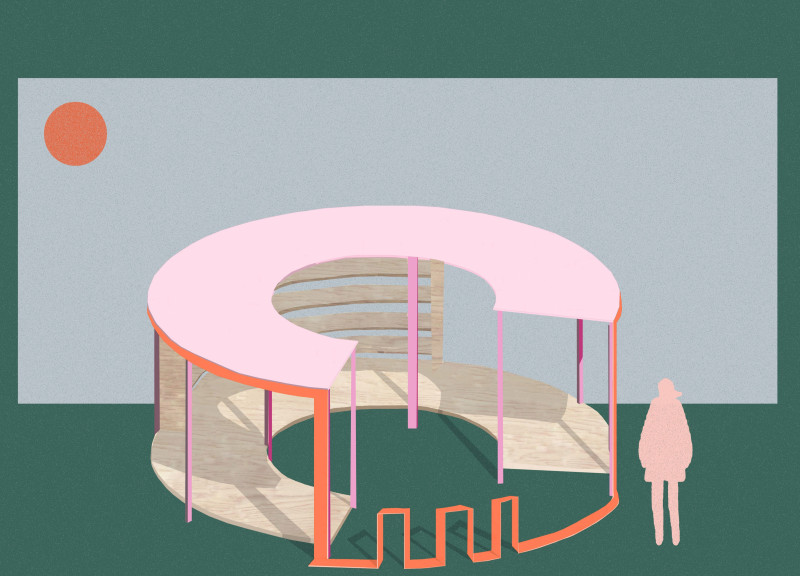

The Jurta Project is an architectural effort that reinterprets the traditional yurt to create portable reading rooms aimed at urban and recreational settings. Located in parks and public areas near larger cities, it focuses on enhancing community interaction with literature. The design emphasizes mobility and accessibility, inviting users to experience reading in a welcoming atmosphere.

Library Quarter

The Library Quarter acts as a dedicated module that shifts the conventional book exchange box into a library. It features walls and doors for protection against the elements, encouraging visitors to browse and select books at their leisure. This design enhances the user experience by providing a comfortable and sheltered environment that fosters a natural curiosity for reading.

Reading Quarters

The Reading Quarters consist of two distinct variations, each designed for different user experiences. Reading Quarter A includes transparent plexiglass walls that promote a serene environment while allowing plenty of natural light. This setup helps create a direct link between readers and their surroundings, enhancing the enjoyment of a book. On the other hand, Reading Quarter B offers an open design, encouraging a closer connection to the outdoor space. This allows readers to feel immersed in nature while they focus on their reading.

Bike Quarter

The Bike Quarter is a practical addition that combines functionality with visual appeal. A steel strip serves as structural support and doubles as a bike rack. This design choice accommodates visitors who arrive on bicycles, promoting sustainable travel options. By integrating these essential details, the Bike Quarter enhances usability and adds to the overall functionality of the reading rooms.

The Jurta Project incorporates several materials to support its design goals. The roof is constructed with a 3 mm powder-coated stainless steel sheet, ensuring durability. Transparent white plexiglass forms the walls of the Library Quarter and Reading Quarter A, aiding in sound reduction while maintaining visibility. The frame consists of a 40x60 mm powder-coated stainless steel square hollow section, which provides stability. Outdoor plywood is used for flooring, and ground screws serve as an efficient solution for creating a stable foundation without extensive site disruption.

Natural light fills the interior spaces, while the clear walls provide a calm setting for readers. The combination of transparency and rustic design encourages a reading experience that connects closely to the outdoors, making the environment both inviting and comfortable.
